PikaLift PK351 Compact Self-Loading Material Lift – 2,160 lb Capacity, Locking Brakes
PikaLift PK351 Compact Self-Loading Material Lift – 2,160 lb Capacity, Locking Brakes
Couldn't load pickup availability
Pre-Order — Estimated Shipping: Early December 2026.

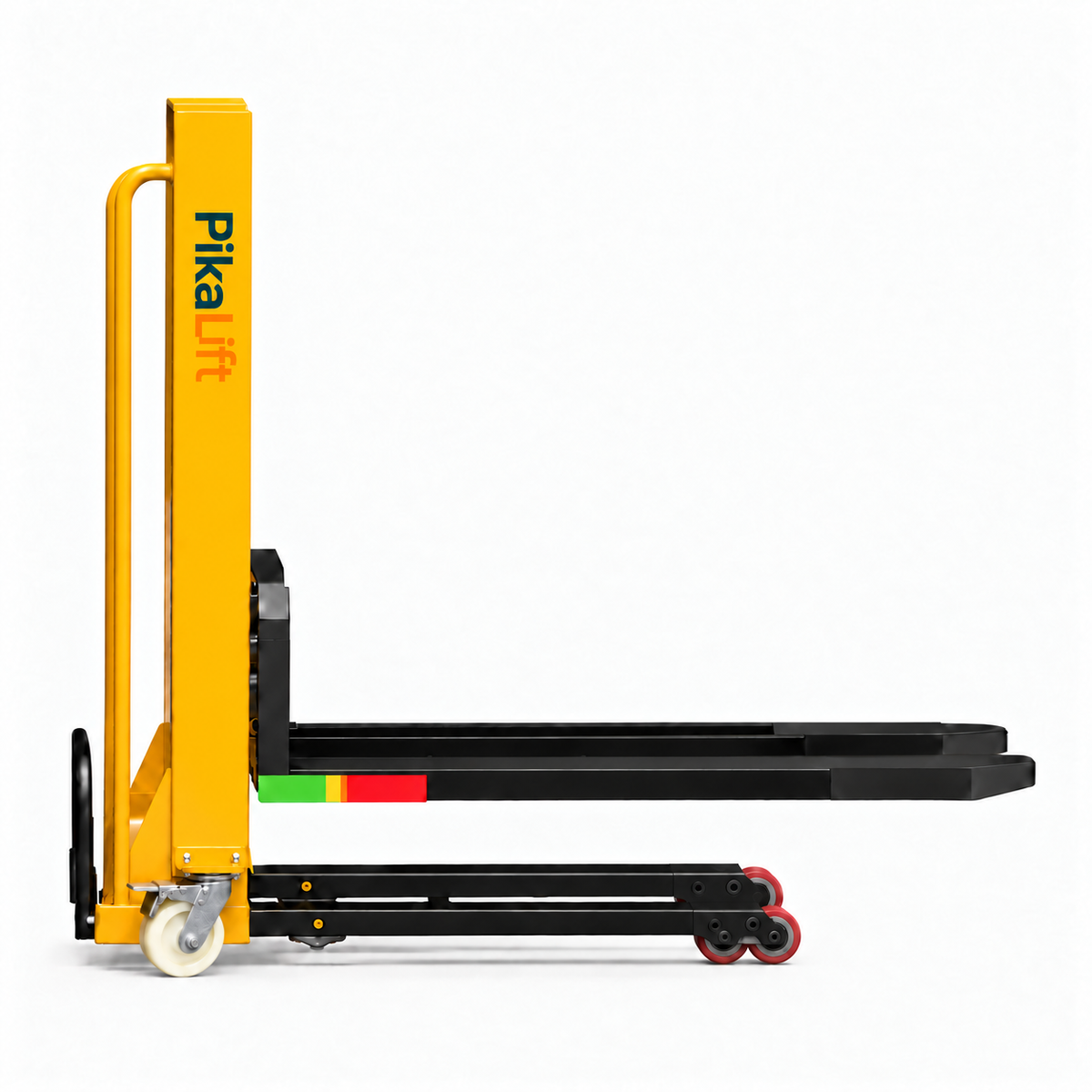

PikaLift PK351 is a compact self-loading material lift designed to help one person load and unload heavy equipment onto lower pickup trucks, trailers, vans, and other vehicles without a forklift, dock, or liftgate.
• Model: PK351 — Compact Self-Loading Material Lift
• 1 Year Warranty — Support from Dallas, Texas
• Designed for vehicles with a cargo-floor height of up to 35 inches

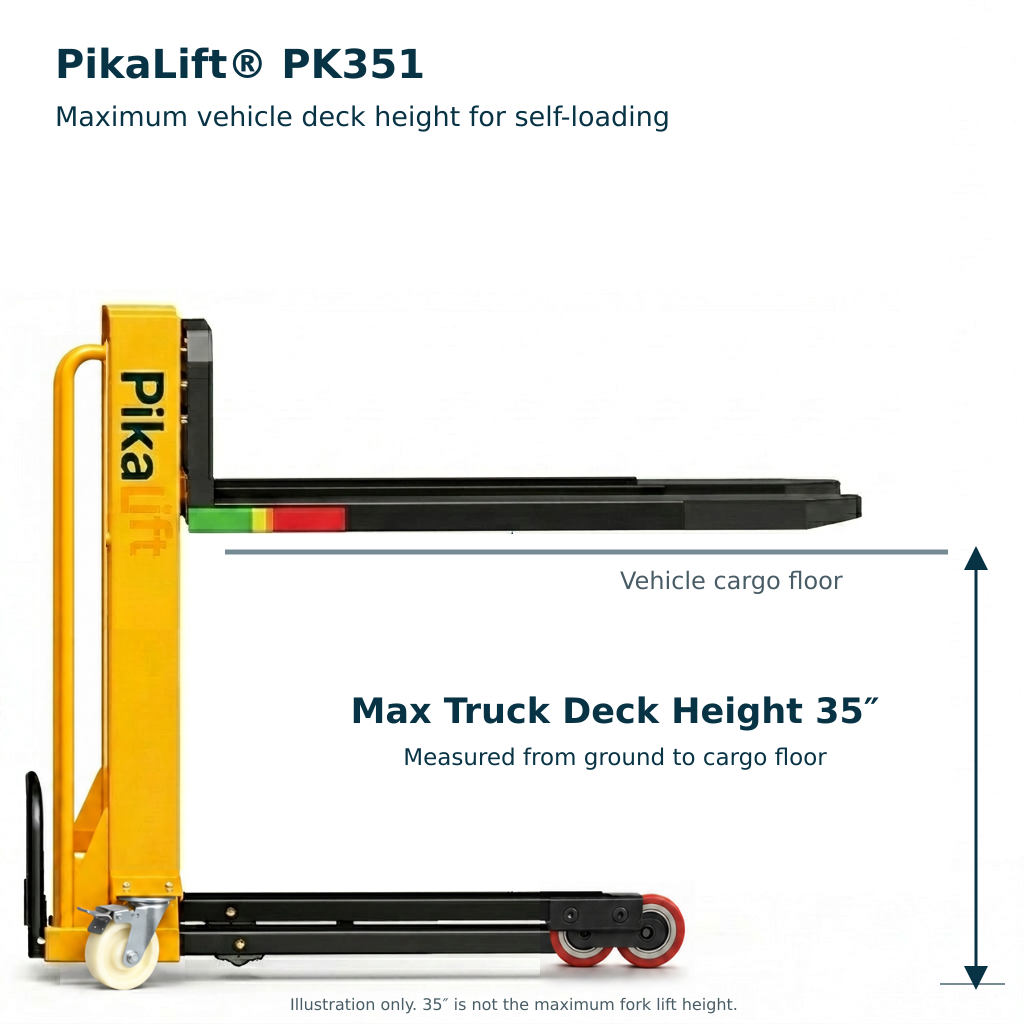

• The 35-inch limit refers to the maximum vehicle deck height for self-loading, not the maximum fork lift height
• Lift capacity: 2,160 lb

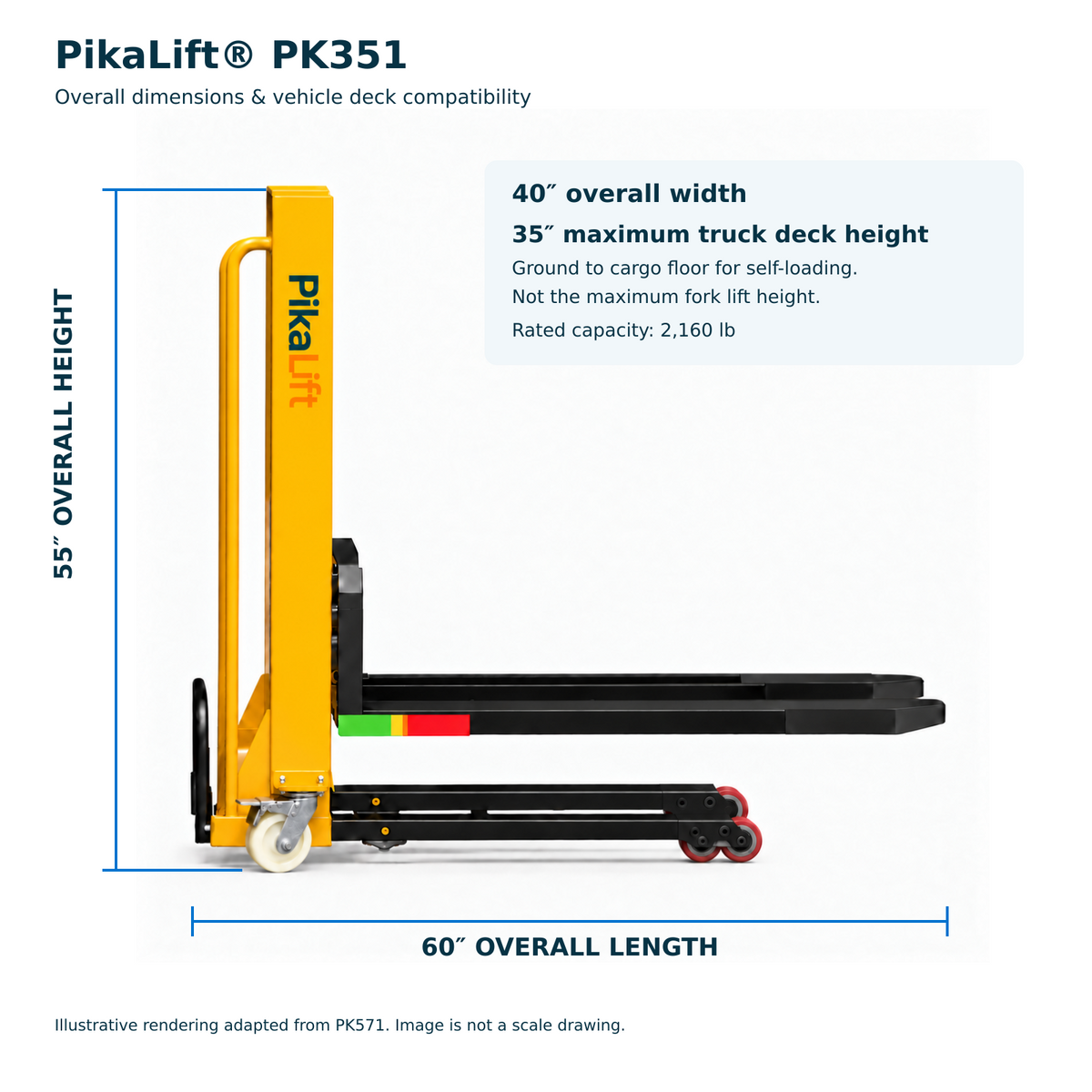

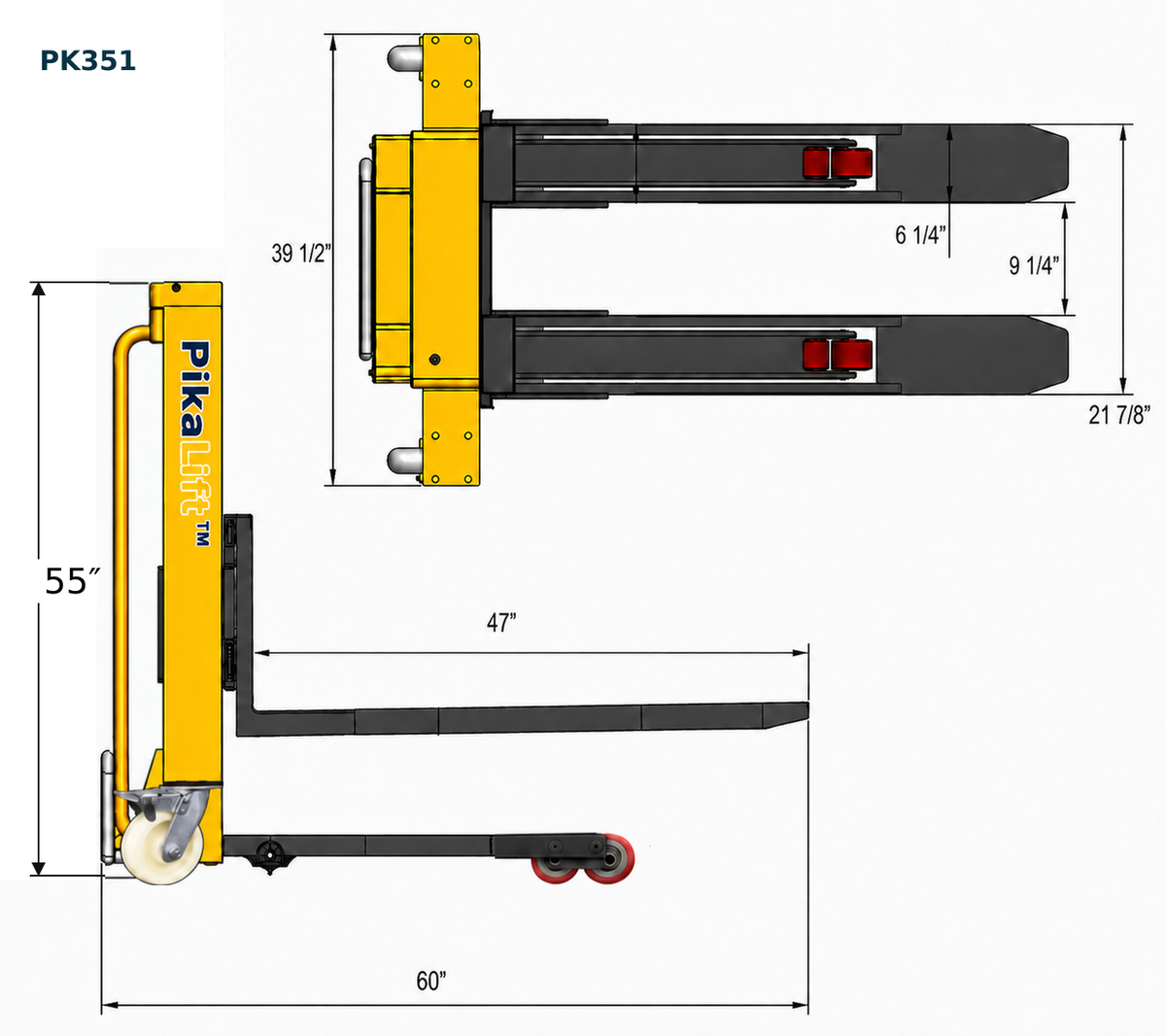

• Overall dimensions: 55" H × 40" W × 60" L
• Compact design for easier storage and maneuvering
• Includes a high-capacity battery, remote control, and charger
• Integrated locking wheels provide added stability and control
• FREE Shipping within the continental U.S.
Assembly takes about 30 minutes ▶ Watch assembly video
• Upgrade to Fully Assembled Delivery: +$300–$400, depending on location
— For shipping outside the continental U.S. or special locations, please contact us at info(at)pikalift.com
Best for lower truck beds, compact work areas, warehouses, delivery businesses, and job sites where a smaller self-loading lift is preferred.
Related Equipment Guides
Explore more guides about loading heavy equipment, forklift alternatives, and truck lifting solutions for delivery businesses and contractors.
• How to Load Heavy Equipment Onto a Pickup Truck
• Portable Lift for Pickup Trucks
• Forklift Alternatives for Small Businesses
• Liftgate vs Portable Truck Lift
• Equipment for Appliance Delivery Businesses
• How to Load a Pallet Without a Forklift
• How to Move a Vending Machine
• ATM Machine Moving Equipment
• Tools for Delivery Businesses
• Pickup Truck Loading Equipment
• Equipment for Trucks Without Liftgates
• One Person Loading System for Trucks
See How It Works
- Load: Roll the item onto the platform and secure it firmly.
- Lift: Next, raise to truck-bed height—smooth and controlled.
- Climb: Then, PikaLift climbs onto your truck while holding the load—no ramps or liftgate.
- Ride: Meanwhile, the lift and cargo ride onboard to the jobsite, saving time and space.
- Unload: Afterward, climb down and place the item exactly where you need it.
Specs
Lift Capacity
2,160 lb maximum lifting capacity. Vertical lift height up to 35 in.
Compatible Vehicles
Best suited for low-deck cargo vans, small box trucks, and low-profile open car haulers with a recommended cargo-floor height of 30 inches or less. Confirm the vehicle has enough clearance for the PK351’s 55-inch height, 60-inch length, and 40-inch width.
Power Source
Electric-powered lift system. No external power source required.
Battery & Charging
Powered by a 48V battery.Approx.
4-hour charge provides up to 200 lifting cycles.
Unit Weight
Self weight: 450 lb, optimized for vehicle-mounted stability and portability.
Why PikaLift Saves You Thousands
| Forklift | ✓ PikaLift | |
|---|---|---|
| Purchase Price | $8,000+ Used unit | Under $3,000 One-time cost |
| Rental Cost | ~$500/day | No rental needed |
| Compatible Vehicle | Box truck or trailer only | Any pickup or truck |
| Storage Space | Large | Minimal |
| Operator License | ✗ Certification required | ✓ 20 mins training |
| Use Anywhere | ✗ Fixed location only | ✓ Any job site |
Forklift pricing based on average used market rates
| Liftgate | ✓ PikaLift | |
|---|---|---|
| Unit Cost | ~$8,000 Per truck | Under $3,000 One-time, any truck |
| Installation Cost | ~$500 per truck | ✓ $0 — no install needed |
| Maintenance & Repair | ~$800+ per incident | ✓ $0 ongoing cost |
| Moves Between Trucks | ✗ Permanently fixed | ✓ Transfers instantly |
| Works on Any Truck | ✗ One truck only | ✓ Any pickup or truck |
| Downtime Risk | ⚠ High — truck out if liftgate fails | ✓ Minimum |
Liftgate pricing based on average installation quotes
| Manual Labor | ✓ PikaLift | |
|---|---|---|
| Loading Labor Cost | $3,500/mo 1 full-time worker | $0/mo No extra worker needed |
| Annual Labor Cost | $42,000/year | $0/year |
| Workers Required | 2+ people | 1 operator |
| Time Efficiency | Low | ✓ 10–15 min per job |
| Injury Risk | ⚠ High — manual lifting up to 600 lbs | ✓ Minimal — machine does the heavy work |
Based on average full-time loading labor wage
